When working with silicone molds, achieving a high level of precision and efficiency is crucial. Whether you’re designing molds for industrial components, food-grade kitchenware, or custom baby products, understanding the key principles of silicone mold design is essential to ensure the final product meets both functional and aesthetic standards. As a leading provider of silicone solutions, Kitchenbathsilicone knows that a well-crafted silicone mold can make all the difference in both the quality of the finished product and the efficiency of the manufacturing process.
In this blog, we’ll break down the essential principles for designing silicone molds that will ensure the longevity, durability, and precision of your products. These key guidelines will help you create molds that perform efficiently and withstand the demands of high-volume production. Whether you’re new to silicone molding or an experienced professional, mastering these principles is essential to avoid costly mistakes and to streamline your manufacturing process.

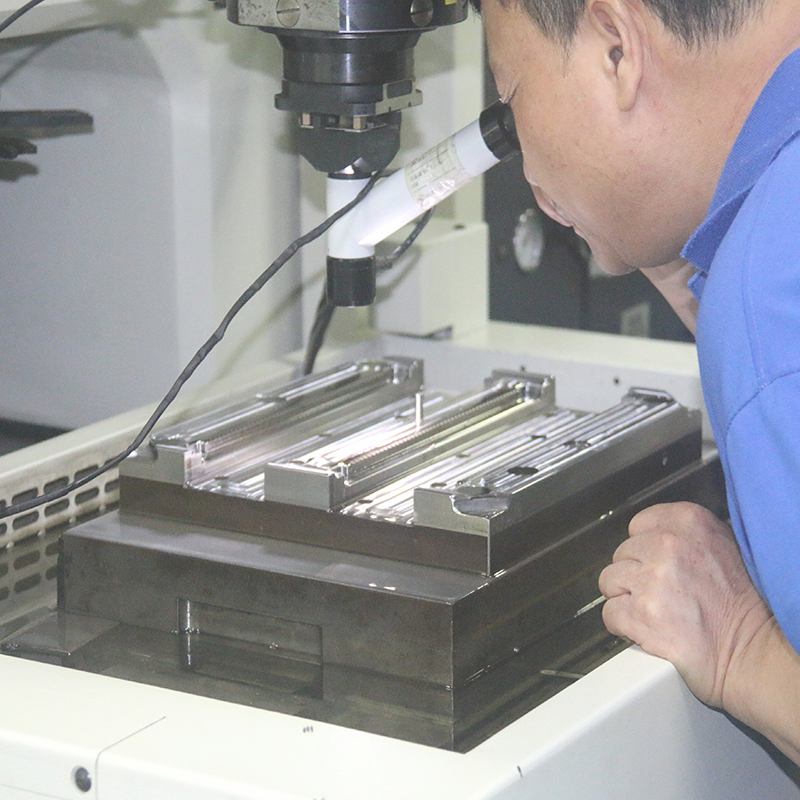

1. Understand the Application and Material Requirements
The foundation of any successful mold design is a thorough understanding of the intended application and material specifications. Silicone is an incredibly versatile material, which makes it ideal for a wide range of applications, including medical devices, kitchenware, automotive parts, and consumer goods. However, the specific requirements of each application will dictate how the mold is designed.
For example, molds intended for food-grade kitchenware must meet stringent FDA guidelines to ensure they are safe for food contact, while molds for medical devices require certifications for biocompatibility and may need to withstand sterilization processes. Conversely, industrial parts may need to withstand extreme temperatures and harsh conditions.
Key questions to consider when designing your mold include:
- What is the final material composition of the product?
- Will the silicone mold be exposed to high or low temperatures during the manufacturing process?
- How critical are properties like flexibility, strength, and durability?
By answering these questions early in the design process, you can select the right type of silicone material for the job, as different grades offer varying levels of heat resistance, flexibility, and durability. At Kitchenbathsilicone, we specialize in offering tailored silicone solutions for each unique application, ensuring the right material is chosen for optimal performance.

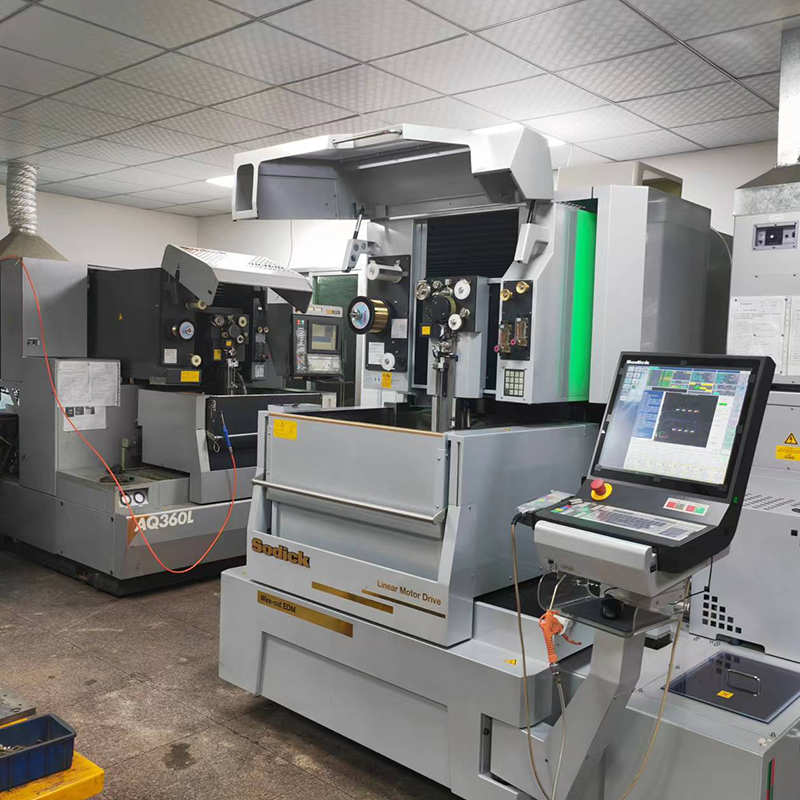

2. Optimal Draft Angles for Easier De-Molding
One of the most critical aspects of silicone mold design is ensuring that the product can be removed from the mold without damage. This is where draft angles come into play. A draft angle is a slight taper applied to the sides of the mold to allow for easier removal of the finished product. Without an adequate draft angle, the product can become stuck or may suffer damage during de-molding, which increases production costs and delays.
The recommended draft angle for silicone molds is typically between 1° and 2°. While silicone is a flexible material, incorporating a slight taper ensures that:
- The product releases from the mold without sticking.
- The mold’s longevity is improved, reducing wear and tear during repeated de-molding cycles.
Neglecting this crucial design element can result in costly errors, such as tearing or damage to the product, which can drastically affect the overall efficiency of the manufacturing process. A well-designed draft angle ensures both smooth de-molding and longer-lasting molds.

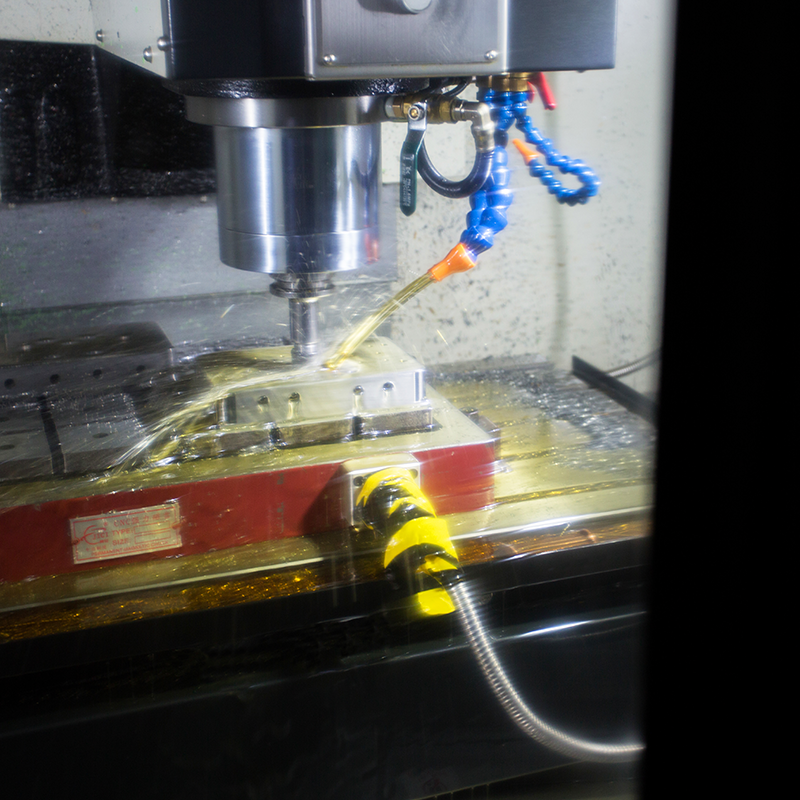

3. Balancing Wall Thickness for Strength and Efficiency
Achieving the right wall thickness is another vital component of mold design. Uneven wall thickness can result in weak spots, long curing times, or even product defects. Thicker walls lead to extended curing times, while thinner walls may compromise the mold’s durability and overall strength. The key is to strike a balance.
Most silicone molds have wall thicknesses ranging from 2mm to 5mm, though this can vary based on the specific needs of the application. The goal is to design walls that are:
- Thick enough to ensure durability.
- Thin enough to allow for efficient curing.
Uniform wall thickness ensures that the mold heats and cools evenly, which reduces cycle times and optimizes production. By avoiding variations in wall thickness, you ensure a more efficient manufacturing process with reduced risk of product failure.

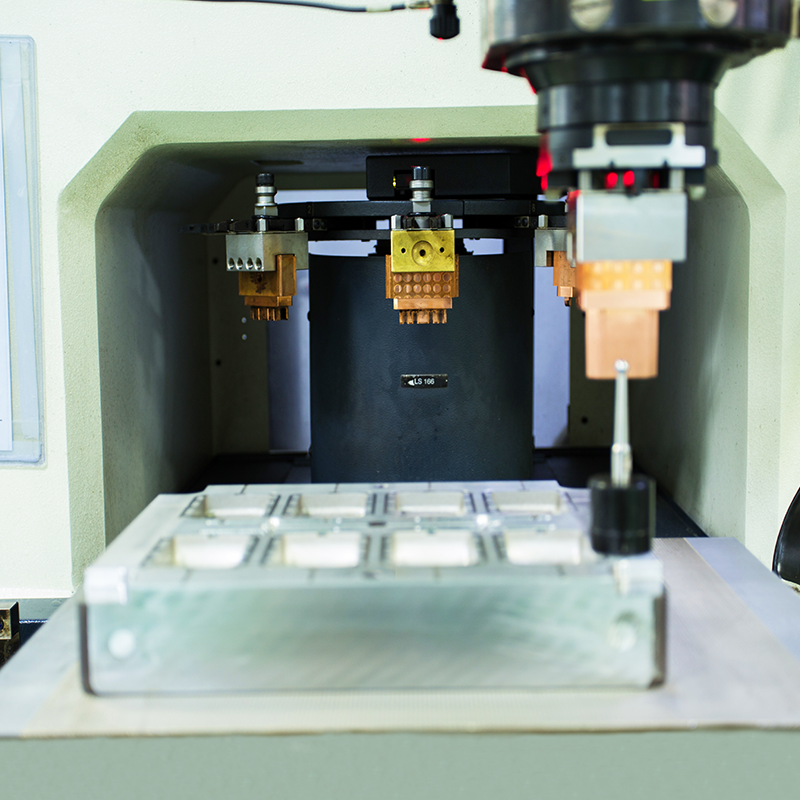

4. Strategic Venting to Eliminate Air Traps
Air trapped inside the mold cavity can cause defects such as bubbles or voids in the final product, which not only compromises its structural integrity but also affects its overall appearance. To prevent this, venting is an essential element of mold design. Venting channels allow air to escape during the pouring or injection process, ensuring the silicone fills the mold cavity smoothly without trapping air.
Proper vent placement is critical to achieving effective venting. Vents should be placed at the highest points of the mold cavity, where air is most likely to accumulate. However, care must be taken not to overdo the venting, as too many vents can create weak spots in the mold.
Without adequate venting, manufacturers may encounter excessive waste and inconsistent product quality, ultimately affecting production efficiency and increasing costs. At Kitchenbathsilicone, we ensure proper venting is incorporated into all our mold designs to maximize product quality and minimize defects.

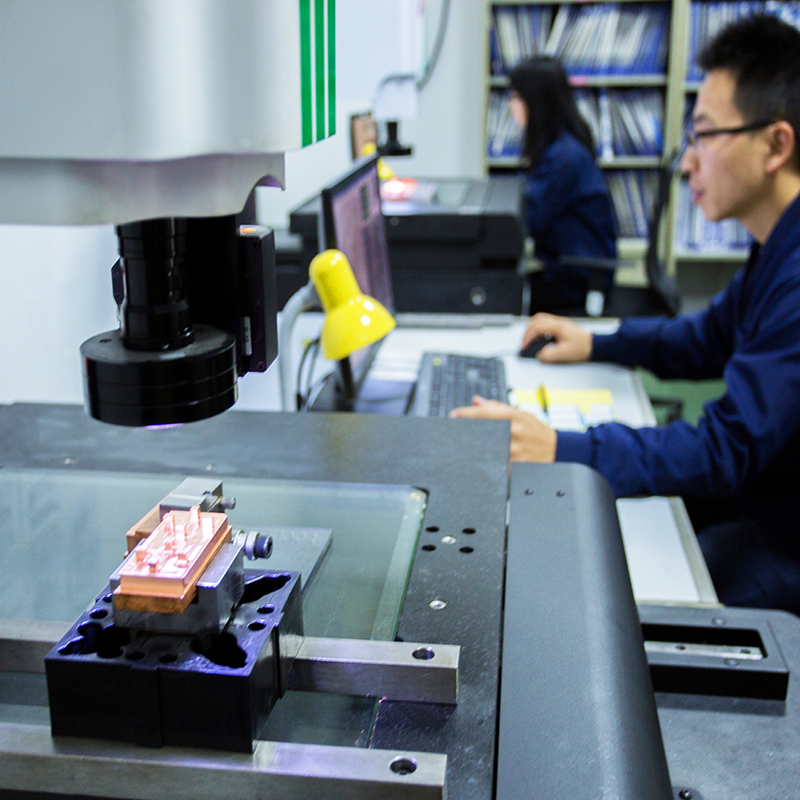

5. Effective Parting Lines for a Clean Finish
The parting line is where two halves of the mold meet and is a critical area to consider in design. A poorly placed parting line can lead to flash—excess material around the edges of the product that requires additional finishing work. The goal is to design parting lines in a way that minimizes the appearance of flash and reduces the need for post-production cleanup.
To avoid flash, the parting line should be placed at locations that are less visible on the finished product, such as natural edges or corners. Additionally, ensuring that the mold halves align perfectly during each cycle is key to maintaining consistency and quality in every run.

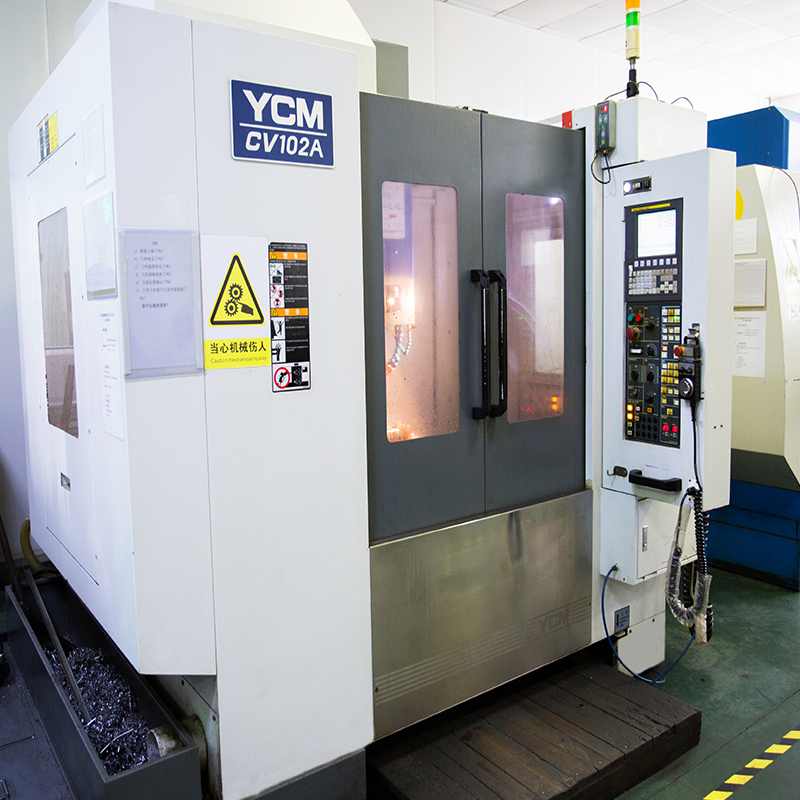

6. Consider Material Shrinkage During Cooling
Silicone experiences a slight shrinkage (typically 1-4%) during the cooling process, which can affect the size and shape of the final product. Accounting for this shrinkage during the mold design phase is essential to ensure that the finished product meets the required specifications.
To compensate for material shrinkage, it’s important to design the mold slightly larger than the intended final dimensions. This way, the finished product will match the desired size after the shrinkage occurs.

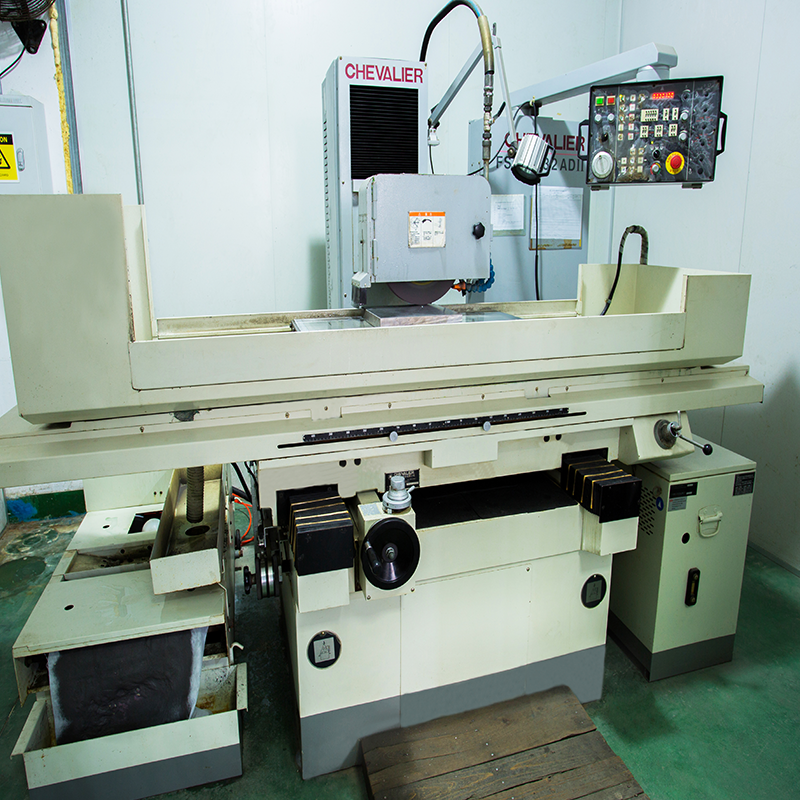

7. Prototyping and Testing for Accuracy
No matter how well you think your design will work, nothing beats the value of prototyping. Prototypes allow you to test your mold design under real-world conditions before committing to large-scale production. This is a critical step in identifying potential flaws in areas such as wall thickness, draft angles, and parting lines.
Modern 3D printing technology has made prototyping more accessible and cost-effective than ever. By creating and testing a prototype, you can make necessary adjustments to your design before mass production begins, ensuring that your mold will perform optimally from the start.
8. Customization for Your Unique Needs
One of the primary advantages of silicone molding is the ability to customize the mold to meet the specific requirements of your product. Silicone can be molded into complex shapes with intricate textures, making it ideal for a variety of industries, from medical to automotive.
When designing a silicone mold, it’s important to tailor the mold’s properties to suit the unique needs of your product. This includes adjusting the silicone’s hardness, flexibility, and heat resistance based on the end-use of the product. By working with an experienced mold designer, you can ensure that every aspect of the mold is optimized for your specific application.
Conclusion
Silicone mold design is both an art and a science that requires careful attention to detail and a deep understanding of the material’s properties and application requirements. By adhering to key principles such as optimal draft angles, balanced wall thickness, strategic venting, and accounting for material shrinkage, you can create molds that are not only efficient but also produce high-quality products.
At Kitchenbathsilicone, we specialize in providing expertly designed silicone molds that meet the highest industry standards. Whether you need molds for medical devices, kitchenware, or custom baby products, we are committed to delivering high-performance solutions that enhance your production processes and ensure the quality of your products.
If you’re ready to take your silicone mold design to the next level, contact Kitchenbathsilicone today to discuss your project needs. Our team of experts is here to help you create molds that work as efficiently and effectively as possible, ensuring success from start to finish.
